Oriented cross-encoding matrix

The main idea of the cross-encoding matrix is how GRADIEND models trained over a diverse range of feature families encode all feature classes.

This aggregation also overcomes the problem of pairwise GRADIENDs seen in the topk overlap plots, where we use pairwise GRADIENDs corresponding to a pair of feature classes on the axis. However, this means that these plots compare two feature pairs with each other, which may become complicated. The cross-encoding matrix instead operates directly on feature classes by aggregating the means of all GRADIENDs trained on that feature class. We treat the encoding as a measure of how similar the feature classes are represented in the base model. The following guide explains how to compute the matrix and how to interpret it.

Computation details: Oriented cross-encoding: computation
Formal notation: Oriented cross-encoding matrix (paper Appendix D)

Computation

The workflows below are for dense matrices when many pairwise GRADIENDs share a large feature domain.

The full demo multilingual_gradiend_demo.py used for the Python package paper adds pronouns, religion, sentiment, and the complete German case grid.

Note that there is also a small demo multilingual_gradiend_demo_small.py which includes only a few feature families.

Core plotting pattern:

from gradiend import build_cross_task_encoder_summary, plot_cross_encoding_heatmap

feature_classes = ["white", "black", "asian", "M", "F"]

encoder_summary = build_cross_task_encoder_summary(
    trainers_by_id, # dict of ids mapping to its trainer
    split="test",
    max_size=config.args.encoder_eval_max_size,
)
plot_cross_encoding_heatmap(
    trainers_by_id,
    feature_classes,
    alignment="counterfactual",
    encoder_summary=encoder_summary,
    output_path="cross_encoding_oriented_counterfactual_heatmap.pdf",
)

When you only deal with a single feature and train all GRADIENDs using a SymmetricTrainerSuite, you can directly use suite.plot_cross_encoding_heatmap(), see Trainer suites and train_race_symmetric_suite.py.

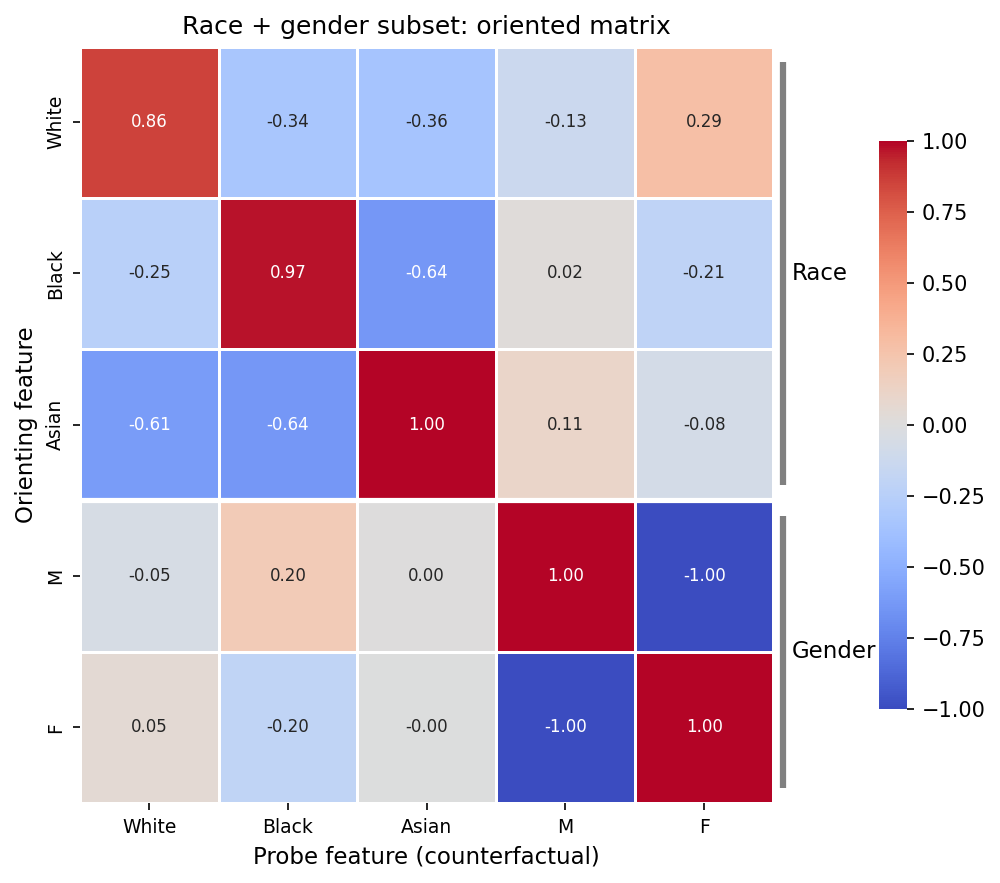

Race + gender oriented counterfactual matrix

Rows are orienting features: each row combines the GRADIENDs that contain that feature. Columns are probe features: the Asian column averages examples changed into Asian; the M column averages examples changed into M; and so on.

Race + Gender Aggregation Example

To understand how the aggregation to feature classes works, this walkthrough uses the race + English gender subset of the multilingual demo outputs. This example includes three race GRADIENDs (race_white_asian, race_black_asian, race_white_black) plus the English gender GRADIEND (gender_en, ordered M/F).

GRADIEND x Transition

Cross-encoding starts by evaluating every trained GRADIEND on the same transition pool, meaning every GRADIEND model is evaluated on every transition used during the training of any considered GRADIEND in that matrix. This gives a GRADIEND × transition table: each row is one trained GRADIEND, and each column is a directed input transition such as white→asian, black→asian, or M→F. Normal encoding evaluation only evaluates the model on the transition pool used during training (i.e., the diagonal of the matrix).

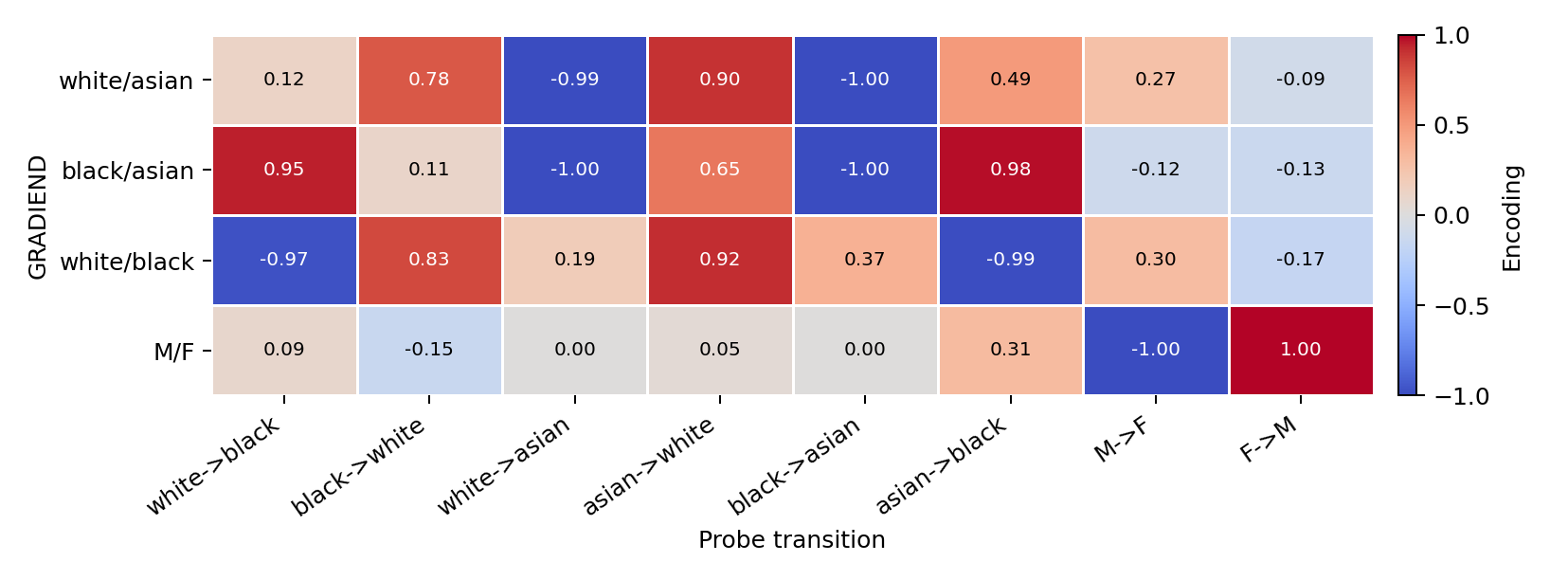

GRADIEND x transition matrix for the race and gender subset

Diagonal cell (Black, Black)

We now trace the aggregation for (Black, Black), which appears as 0.97 in the matrix above.

Because the GRADIENDs used for this example are trained with counterfactual inputs, this aggregation uses input transitions with Black as the counterfactual class. With factual-input GRADIENDs, it would instead use transitions with Black as the factual class.

We also consider all GRADIEND models involving the Black feature. This gives two GRADIEND models and two input transitions, resulting in four selected cells.

Pre-anchor contributors for Black, Black

An important detail to consider for aggregating the GRADIEND models is the sign of the encoded feature. During training of GRADIEND F1<->F2, the encoder is normalized to assign +1 to the first class F1 and -1 to the second class F2. Hence, we need to align the sign of the encoded feature to be positive for the selected orienting feature, which we do with the so-called anchor sign.

The anchor sign differs across the two contributing GRADIENDs: black is the first class in race_black_asian (+1) and the second class in race_white_black (-1). After applying these signs, the four contributions are consistently positive:

GRADIEND Transition Raw mean Anchor sign Signed value
race_black_asian white→black 0.948 1 0.948
race_black_asian asian→black 0.981 1 0.981
race_white_black white→black -0.971 -1 0.971
race_white_black asian→black -0.988 -1 0.988

Mean signed value: 0.972, shown as 0.97 in the rounded heatmap cell.

Oriented Black, Black cell highlight

Non-identity cell (Black, Asian)

In the second example, we consider (Black, Asian), which appears as -0.64 in the matrix above.

Pre-anchor contributors for Black, Asian

GRADIEND Transition Raw mean Anchor sign Signed value
race_black_asian black→asian -0.998 1 -0.998
race_black_asian white→asian -0.996 1 -0.996
race_white_black black→asian 0.369 -1 -0.369
race_white_black white→asian 0.187 -1 -0.187

Mean signed value: -0.637, shown as -0.64.

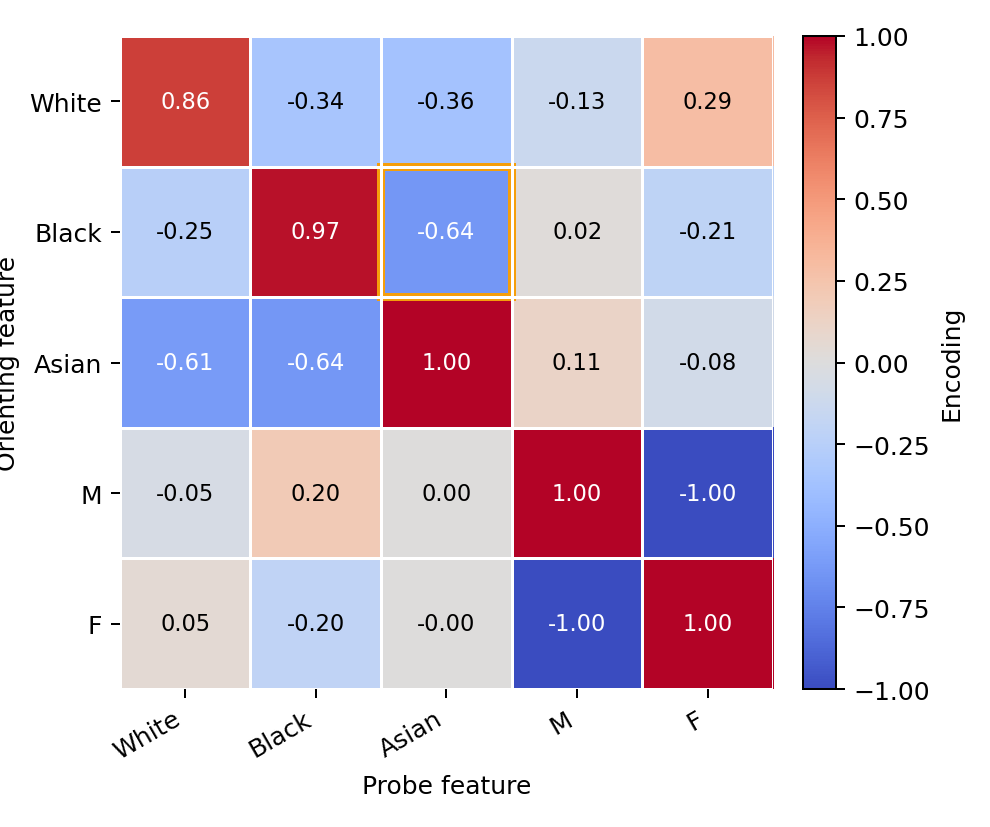

Oriented Black, Asian cell highlight
