Trainer suites

Assume you need to train multiple GRADIEND models that share the same TrainingArguments (and usually the same data). You can:

Use a trainer suite — SymmetricTrainerSuite or PositiveTrainerSuite builds one child per pair from shared constructor kwargs and provides suite-level evaluation and comparison (similarity heatmaps, cross-encoding, etc.).
Use a trainer collection — TrainerCollection groups trainers you already built (or flattens several suites) when children differ in data, args, or how they were constructed. Pass trainers directly; ids come from each trainer.run_id.
Do it fully manually — create trainers, call train() on each, load models, and run comparison plots yourself (only when you do not need grouped train()).

A suite is worth it when many related pairwise runs share one trainer class and mostly shared kwargs. A collection is worth it when you need one place to train or iterate heterogeneous runs (e.g. several suites plus a lone trainer for a cross-task heatmap).

Suite vs collection — which tool?

Situation	Use
Same trainer class, shared data/args, pairs from `target_classes` or `pair_definitions`	`SymmetricTrainerSuite` or `PositiveTrainerSuite`
Mix hand-built trainers, or combine several suites / a suite + extra trainers	`TrainerCollection`
One-off single GRADIEND	`TextPredictionTrainer` only

TrainerCollection does not generate children from pair definitions and does not provide suite comparison plots (plot_similarity_heatmap, etc.). Use it to train() a fixed set of trainers and to obtain a flat trainers dict for comparison helpers (compute_similarity_matrix, plot_cross_encoding_heatmap, …) that take Dict[str, Trainer].

Symmetric vs positive — which suite?

Each child GRADIEND still trains on two target_classes. The suite type only matters for how those pairs are defined:

SymmetricTrainerSuite — neither class is privileged (e.g., genders, races, articles, pronouns)
PositiveTrainerSuite — each contrast has a positive and negative pole (e.g., good vs bad, formal vs informal, commutative vs non-commutative).

Quick check: if swapping the two class names would change what the contrast means, use PositiveTrainerSuite. If A vs B is the same task as B vs A, use SymmetricTrainerSuite.

`SymmetricTrainerSuite`

Use when classes are peers — no class is inherently the “positive” side. Pass target_classes; the suite trains one child GRADIEND per unordered pair.

from gradiend import (
    SymmetricTrainerSuite,
    TextPredictionTrainer,
    TrainingArguments,
)

RACE_CLASSES = ["asian", "black", "white"]

suite = SymmetricTrainerSuite(
    TextPredictionTrainer,
    model="distilbert-base-cased",
    data="aieng-lab/gradiend_race_data",
    eval_neutral_data="aieng-lab/biasneutral",
    target_classes=RACE_CLASSES,
    args=TrainingArguments(
        experiment_dir="runs/race_suite",
        max_steps=100,
        fail_on_non_convergence=True,
    ),
)

suite.train()

:material-file-code-outline: train_race_symmetric_suite.py

This yields three children — asian__black, asian__white, and black__white — one TextPredictionTrainer per combinations(RACE_CLASSES, 2). Default child_id values sort the two class names alphabetically (black__white, not white__black). Regardless of how you choose children (see below), construction always builds one trainer per child, stores checkpoints under experiment_dir/<run_id>/<child_id>/, and validates that each pair has training transitions in the data.

list(suite.pair_definitions)   # child ids, e.g. "black__white"
suite.get_trainer("black__white")

Choosing children

You pass	What happens
`target_classes=["a","b","c"]`	All `combinations(..., 2)` — as in the example above
`target_pairs=[("a","b"), ("a","c")]`	Only those pairs; default `child_id` / `label`
`pair_definitions=[SuitePairDefinition(...), ...]`	Explicit manifest — full per-child control
Nothing explicit	Classes inferred from data columns / HF per-class layout

Subset of pairs with `target_pairs`

When you do not want every combination, list the pairs explicitly. Default checkpoint names stay classA__classB:

SymmetricTrainerSuite(
    TextPredictionTrainer,
    model="distilbert-base-cased",
    data="aieng-lab/gradiend_race_data",
    target_classes=["asian", "black", "white"],
    target_pairs=[("white", "black"), ("white", "asian")],
    args=TrainingArguments(experiment_dir="runs/race_subset", max_steps=100),
)

Two children: black__white and asian__white (black/asian omitted).

Full control with `pair_definitions`

Use pair_definitions when you need custom child_id or label per child (e.g. stable run names for a paper). Each child is one SuitePairDefinition:

Field	Role
`target_classes`	(required) The two classes this child trains on
`child_id`	Checkpoint subdir and `suite.get_trainer(...)` key (default: `classA__classB`, classes sorted A≤B)
`label`	(optional) Name on suite comparison plots (default: `A <-> B`)

Same two-pair subset as target_pairs above, with explicit ids:

from gradiend import (
    SuitePairDefinition,
    SymmetricTrainerSuite,
    TextPredictionTrainer,
    TrainingArguments,
)

suite = SymmetricTrainerSuite(
    TextPredictionTrainer,
    model="distilbert-base-cased",
    data="aieng-lab/gradiend_race_data",
    pair_definitions=[
        SuitePairDefinition(
            target_classes=("white", "black"),
            child_id="race_white_black",
        ),
        SuitePairDefinition(
            target_classes=("white", "asian"),
            child_id="race_white_asian",
        ),
    ],
    args=TrainingArguments(experiment_dir="runs/race_subset", max_steps=100),
)

suite.train()

What you can do after training

# Per-child access (same API as a single trainer)
trainer = suite.get_trainer("black__white")
trainer.evaluate_decoder(plot=True)

# Encoder eval on every child (cached per child under experiment_dir)
suite.evaluate_encoder(split="test", plot=True, full_eval=True)

suite.plot_topk_overlap_heatmap(topk=1000, value="intersection_frac", output_path="suite_topk_overlap.png")

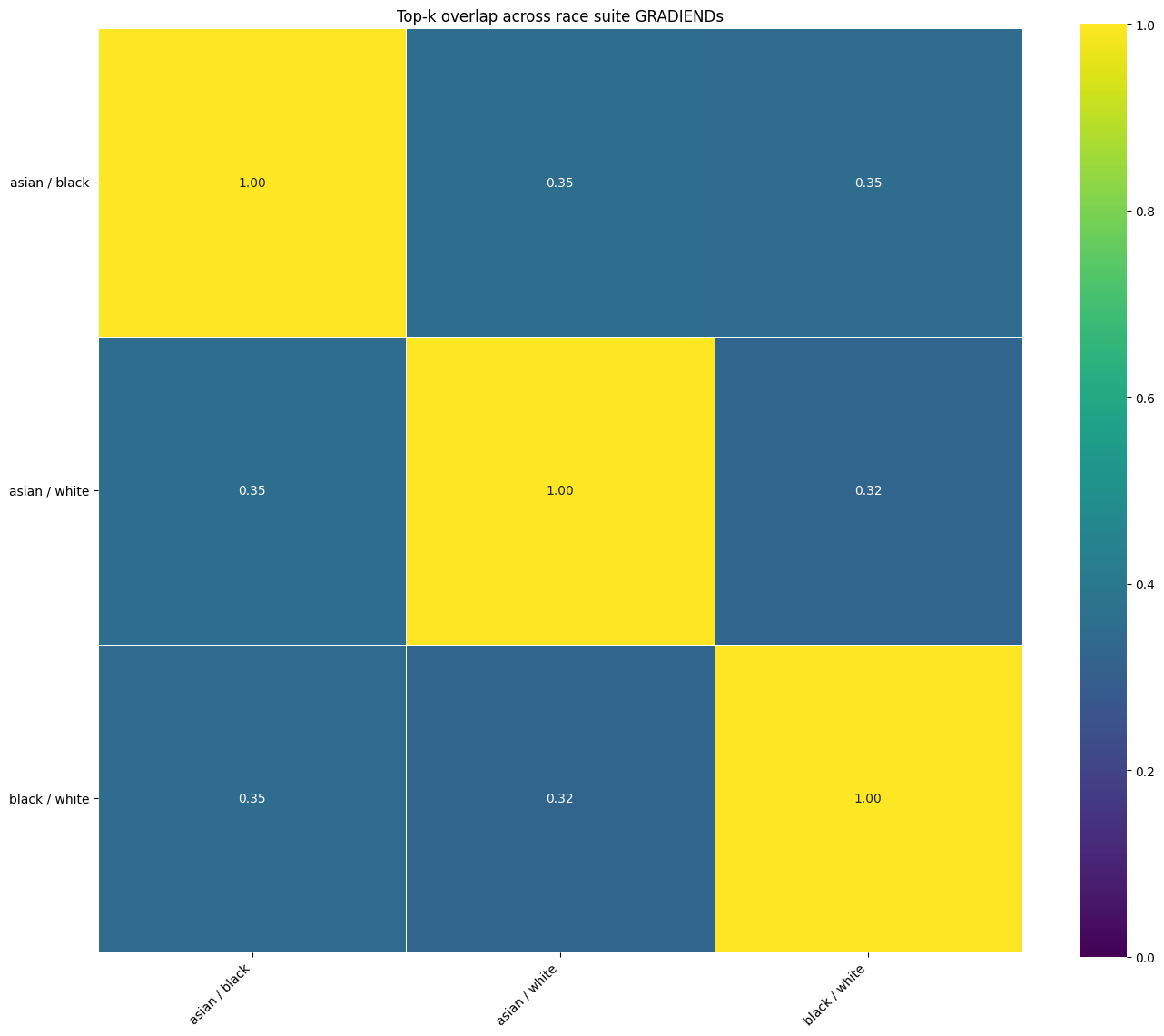

Top-k decoder overlap across the three race GRADIENDs

suite.plot_cross_encoding_heatmap(
    ["white", "black", "asian"],
    split="test",
    alignment="counterfactual",
    output_path="suite_cross_encoding.png",
)

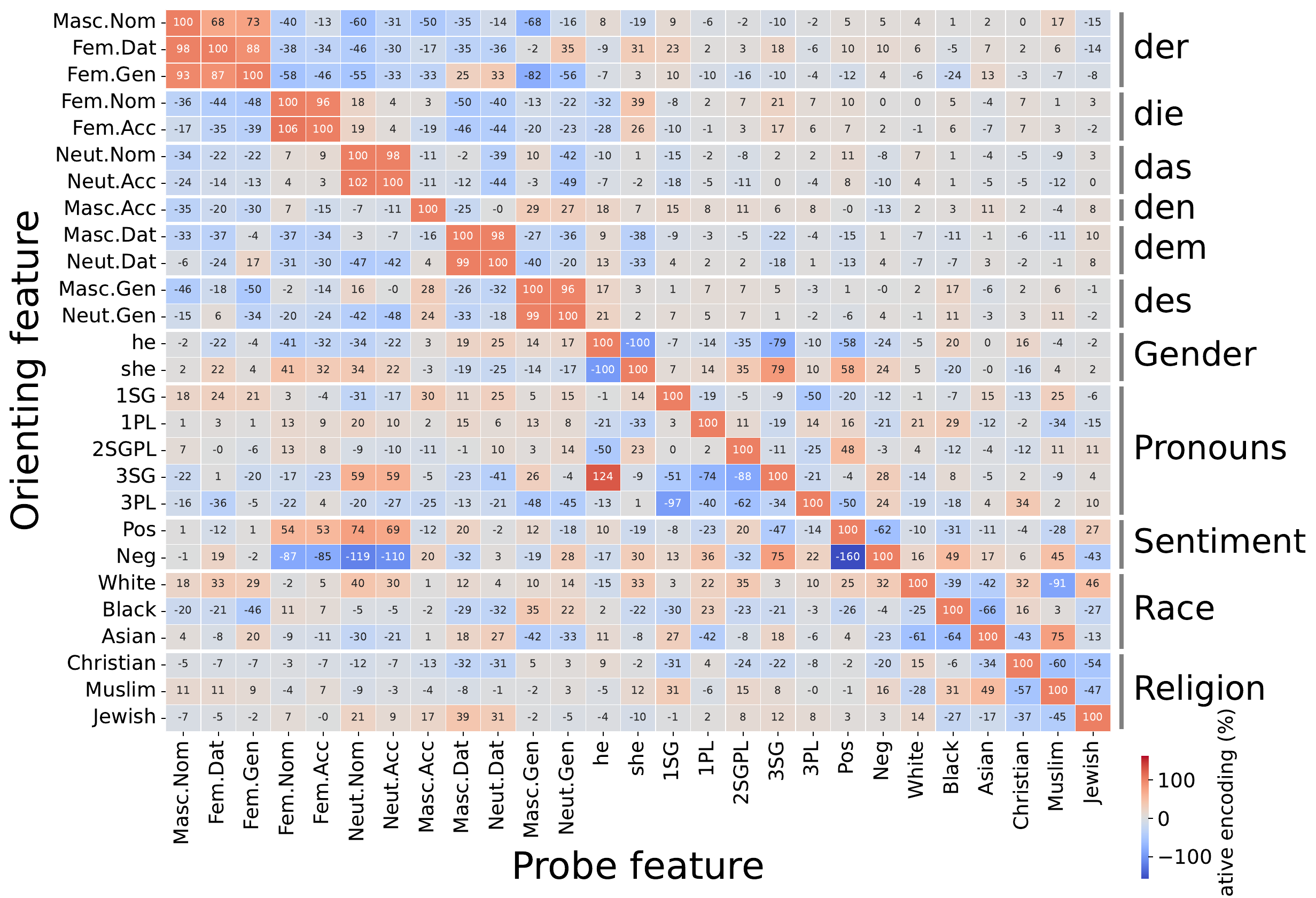

Oriented cross-encoding (counterfactual alignment) for the race suite

:material-file-code-outline: train_race_symmetric_suite.py

Larger demos

For cross-task grids beyond one homogeneous suite:

:material-file-code-outline: multilingual_gradiend_demo_small.py

:material-file-code-outline: multilingual_gradiend_demo.py

See Oriented cross-encoding matrix.

`PositiveTrainerSuite` (directed positive vs negative)

Use this suite when each contrast has a privileged positive direction: sentiment (good vs bad), property present vs absent, etc.

from gradiend import (
    PositiveFeatureDefinition,
    PositiveTrainerSuite,
    TextPredictionTrainer,
    TrainingArguments,
)

suite = PositiveTrainerSuite(
    TextPredictionTrainer,
    model="bert-base-uncased",
    data=training_data,
    eval_neutral_data=neutral_data,
    positive_feature_definitions=[
        PositiveFeatureDefinition(
            positive_feature_class="good",
            negative_feature_class="bad",
        ),
        PositiveFeatureDefinition(
            positive_feature_class="happy",
            negative_feature_class="sad",
        ),
    ],
    args=TrainingArguments(
        experiment_dir="runs/sentiment_suite",
        max_steps=500,
        fail_on_non_convergence=True,
    ),
)

suite.train()
suite.evaluate_encoder(split="test")
suite.plot_similarity_heatmap(measure="cosine", output_path="suite_similarity.png")
suite.plot_cross_encoding_heatmap(
    output_path="suite_cross_encoding.png",
)

:material-file-code-outline: train_sentiment_positive_suite.py

Default mode="single": one child GRADIEND per PositiveFeatureDefinition above.

`PositiveFeatureDefinition`

Field	Role
`positive_feature_class`	Class treated as the positive pole
`negative_feature_class`	Opposite pole
`label`	(optional) Display name in plots

Each definition becomes one child: positive_feature_class vs negative_feature_class, with positive_class stored on the pair for cross-encoding.

Cross-encoding on positive suites

suite.plot_cross_encoding_heatmap(
    metric="positive_mean",   # or "negative_mean", "positive_minus_negative"
    normalize=False,          # True: divide each row by its diagonal
)

Cell (A, B): how well GRADIEND trained for pair A encodes data from contrast B, with sign aligned to A’s positive class. See Cross-model comparison.

Cosine similarity across sentiment suite children

Cross-encoding across sentiment suite children

Optional: `mode="all_but_one"`

Purpose: train one GRADIEND per leave-one-out holdout. Each child learns a single positive vs negative axis by merging all other word pairs — useful when you want a union-of-contrasts model with one feature (or group) excluded, e.g. to test whether a GRADIEND trained without valence still encodes valence transitions.

Compare with the example above (mode="single"): there you get one child per pair. Here you get one child per held-out pair, or per held-out feature_class_group when every definition sets that field.

:material-file-code-outline: train_sentiment_positive_suite_all_but_one.py

With default --holdout group the suite builds four children:

`child_id`	Held-out group	Merged `positive` classes	Merged `negative` classes
`holdout_group__quality`	quality	happy, excited, love, fast	sad, bored, hate, slow
`holdout_group__valence`	valence	good, love, fast	bad, hate, slow
`holdout_group__affection`	affection	good, happy, excited, fast	bad, sad, bored, slow
`holdout_group__pace`	pace	good, happy, excited, love	bad, sad, bored, hate

With --holdout feature (no feature_class_group), you get five children — one per held-out word pair (holdout__good__bad, holdout__happy__sad, …).

Comparison plots: use plot_similarity_heatmap (parameter overlap between holdout models). Do not use plot_cross_encoding_heatmap here — every child trains on the same synthetic positive/negative classes, so cross-encoding columns would be identical and the heatmap is flat across each row. Cross-encoding heatmaps are for mode="single", where each child has distinct word-pair target_classes.

`TrainerCollection`

Use when trainers are already built or come from incompatible suite configs (different datasets, TrainingArguments, or pair manifests). Each passed trainer must have a non-empty run_id; that becomes the collection key.

from gradiend import TextPredictionTrainer, TrainerCollection, SymmetricTrainerSuite

# Hand-built trainers
good_bad = TextPredictionTrainer(..., run_id="sentiment_good_bad", ...)
trainers = TrainerCollection(good_bad, other_trainer)

# Flatten several suites and standalone trainers
trainers_by_id = TrainerCollection.merge(
    race_suite,
    religion_suite,
    gender_en_trainer,
).trainers

Combining a suite with extra trainers

When one child needs different data or args than the rest of a suite, build a SymmetricTrainerSuite for the homogeneous part and merge in the outlier:

full_suite = SymmetricTrainerSuite(
    TextPredictionTrainer,
    pair_definitions=[...],  # positive <-> negative
    ...
)
good_bad_trainer = TextPredictionTrainer(
    ...,
    config=TextPredictionConfig(run_id="sentiment_good_bad", ...),
)

sentiment = TrainerCollection.merge(
    full_suite,
    good_bad_trainer,
    retain_models_in_memory=False,
)
sentiment.train(use_cache=True)

What `TrainerCollection` provides

Method / attribute	Purpose
`TrainerCollection(*trainers)`	Group trainers keyed by `trainer.run_id`
`TrainerCollection.merge(*parts)`	Combine `Trainer`, `TrainerSuite`, and/or `TrainerCollection`
`.trainers`	`Dict[str, Trainer]` for comparison APIs
`.train(use_cache=...)`	Train every child in order
`.items()` / `.get_trainer(id)`	Same iteration pattern as `TrainerSuite`

When flattening a TrainerSuite, keys are the suite child ids from suite.items() (equal to trainer.run_id when the suite has no parent run_id).

Memory: retain_models_in_memory=False unloads each child after an uncached train(), same idea as on TrainerSuite.

Not included: suite-only analytics (plot_similarity_heatmap, plot_cross_encoding_heatmap on the group, annotate_data, shared base-model caching across children). For those, keep children inside one TrainerSuite, or call comparison functions on collection.trainers yourself.

What every suite provides (`TrainerSuite` base)

These work on both symmetric and positive suites:

Method	Purpose
`suite.train()`	Train every child; returns `{child_id: train_result}`
`suite.evaluate_encoder(...)`	Encoder eval per child; `full_eval=True` on `split="test"` includes non-target transitions
`suite.evaluate_decoder(...)`	Decoder grid per child
`suite.evaluate(...)`	Full evaluate per child
`suite.call("method", ...)`	Forward any trainer method to all children
`suite.get_trainer(child_id)`	Single child `TextPredictionTrainer`
`suite.get_models(...)`	Load GRADIEND weights for comparison (`gradiend_only=True` skips base model)
`suite.compute_similarity_matrix(...)`	Numeric pairwise similarity
`suite.plot_similarity_heatmap(...)`	Heatmap of cosine / top-k overlap / etc.
`suite.plot_topk_overlap_heatmap(...)`	Top-k overlap specifically
`suite.plot_cross_encoding_heatmap(...)`	Oriented cross-encoding within one suite; see Oriented cross-encoding matrix for dense multi-class grids
`suite.annotate_data(...)`	One annotation pass on shared data (not per child)
`suite.clear_model_cache()`	Free GPU memory between heavy steps

Memory: retain_models_in_memory=False (used in train_sentiment_positive_suite.py) unloads each child after training/eval so many GRADIENDs fit on one GPU. Default is True (faster re-analysis, more VRAM).

Output layout: with experiment_dir="runs/foo" and run_id="suite_name" on the suite (optional), child checkpoints live at runs/foo/suite_name/<child_id>/. Each child is a normal trainer run with its own caches and plots.

Multi-seed suites

When children use multi-seed training (analyze_seed_stability=True, saved_seed_runs="all_convergent"), suite comparison methods accept seed_selection and dispersion:

suite.plot_similarity_heatmap(
    seed_selection="all_convergent",
    dispersion="std",
)

:material-file-code-outline: train_multi_seed_stability.py

Multi-seed suite dispersion heatmap

This dispersion view is a stability diagnostic, not the overlap matrix itself: each cell is the seed-to-seed standard deviation of the corresponding top-k overlap comparison after converting overlap values to percent. A value of 0.0 means the matched-seed overlap percentages are effectively identical across runs. A value of 0.7 means the standard deviation is 0.7 percentage points, so overlap values near a 42% mean would typically be only about 41.3%, 42.0%, and 42.7% across seeds; even the brightest cells here are small seed effects. The color scale is local to the observed dispersion range rather than fixed to the 0–100 overlap scale.

Heatmap cells can then show mean comparison values with seed spread. Enable only after single-seed children converge reliably — see Multi-seed analysis.

Oriented cross-encoding matrix — dense GRADIEND×transition and feature-aligned matrices across many pairwise runs
Cross-model comparison — choosing similarity vs cross-encoding metrics
Evaluation (inter-model) — top-k overlap tutorial
Evaluation & visualization — heatmap customization
